LOONG 4

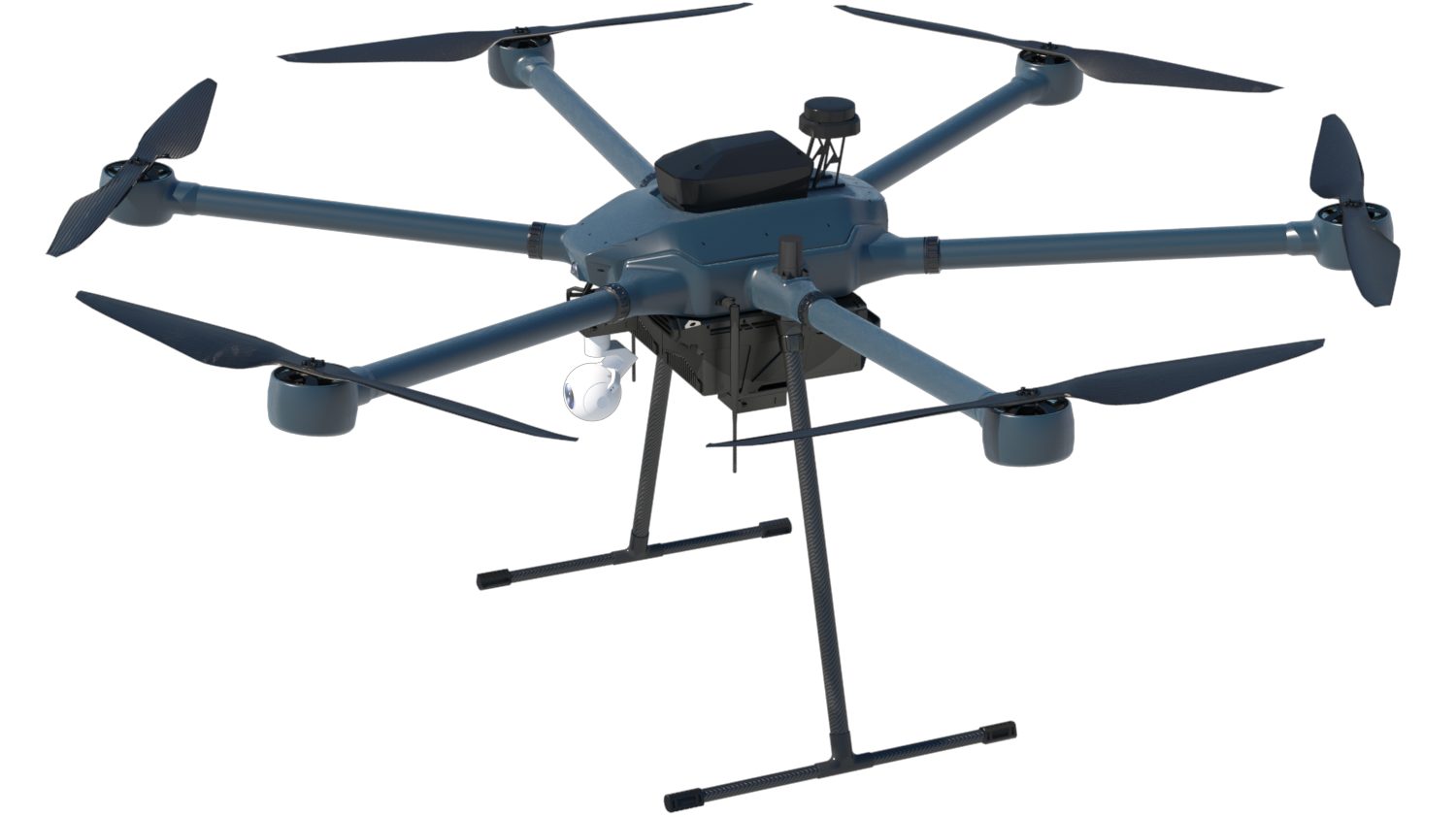

LOONG 4 is a medium-sized multi rotor drone with heavy load and long flight time. The maximum load is 10kg, supporting RTK high-precision positioning system.
Parameters
Dimension
Size(L*W*H, propeller included)：1650*1650*560 mm
Wheelbase：1650 mm
Weight
Aircraft Weight：9 kg
Max. Payload：10 kg
Max. Takeoff Weight：28 kg
Performance
Max. Flight Time：70 min
Cruising Speed：15 m/s
Max. Horizontal Speed：20 m/s
Max. Ascent Speed：4 m/s
Max. Descent Speed：4 m/s
Max. Flight Altitude：5000
Comm. & Nav
Transmission Range：20 km / 30 km
GNSS：GPS+GLONASS+BeiDou+Galileo
Environment
Max. Wind Resistance：Level 6
IP Protection Rating：IP54
Operating Temperature：-20~60℃
Packaging
Fuselage Box: 830*750*600 mm
Arm Box: 109*440*300 mm
Fuselage Box: 26.5 kg
Arm Box: 12.6 kg
Features
- Long Endurance
- Precision Bombing
- Strong Anti-jamming
- Heavy load
- Efficient fee ratio
- Support the close bomb mode
- VTOL
- Highly Stealthy
- Strong Wind Resistance
