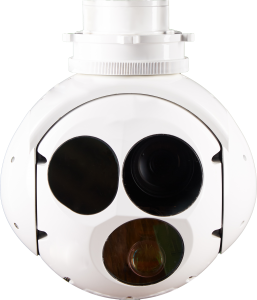

Dragon VT360RL
The Dragon VT360RL pod integrates visible light, thermal imaging and lidar distance measurement and can use drone to measure precise meter-level target positioning wth day and night combat capabilities.
Gimbal
Stabilized System: 2-axis
Mechanical Range: 360° continuous Pan；Pitch: -110~ +10°
Zoom Camera
Sensor: 1/2.8″ CMOS
Effective Pixels: 2.13 MP
Resolution：1920*1080
Focal length: 4.3-129 mm
Optical Zoom：30x
Digital Zoom：12x
Max. Zoom：360x
General
Dimensions: 172*172*200 mm
Weight: 2.5 kg
Voltage: 24 V
Operating Temperature：-20~60 ℃
Thermal Camera
Focal length: 35 mm
Resolution: 640*512
Digital Zoom：2x、4x
Pixel Pitch：12 μm
Spectral Band：8-14 μm
Laser Range Finder
Wave length：1064 nm
Measurement accuracy: ± 1 m
Measurement range：120-5000 m
Laser Illuminator
Illumination Range：≥ 2 km
Continuous Time: ≥ 20 s
Encoding Accuracy：≤ 2.5 μs
- Target location and positioning functionality.
- Visible and infrared dual-mode imaging capability.
- Ground target detection and recognition ability.
- Search, track, lock, and guide working modes.Laser illumination and rangefinding features.
