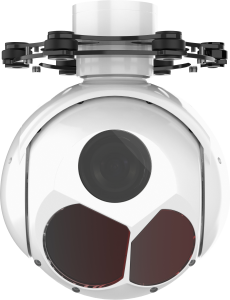

Dragon VT360R
The EO+IR+lidar pod integrates visible light, thermal and lidar distance measuring function, which can use drone to measure precise, meter-level distance of the target, and can be operated day and night.
Parameters
Gimbal
Stabilized System: 2-axis
Mechanical Range：360° continuous Pan；Pitch: -110~ +10°
Zoom Camera
Sensor: 1/2.8″ CMOS
Effective Pixelsr: 2.13 MP
Resolution: 1920*1080
Focal length：4.3-129 mm
Optical Zoom：30x
Digital Zoom：12x
Max. Zoom：360x
General
Dimensions: 135*135*180mm
Weight: 1.2 kg
Voltage: 12 V
Operating Temperature：-20~60 ℃
Thermal Camera
Focal length: 35 mm
Resolution：640*512
Digital Zoom：2x / 4x
Pixel Pitch：12 μm
Spectral Band：8-14 μm
Laser Range Finder
Wave length: 1535 nm
Measurement accuracy:± 1 m
Measurement range:50-3000 m
Features
- Equipped with visible light imaging capability.
- Automatic capture functionality.
- Target GPS information logging capability.
- Ground target detection and recognition ability.
- Photo and video recording features.
