LOONG 9

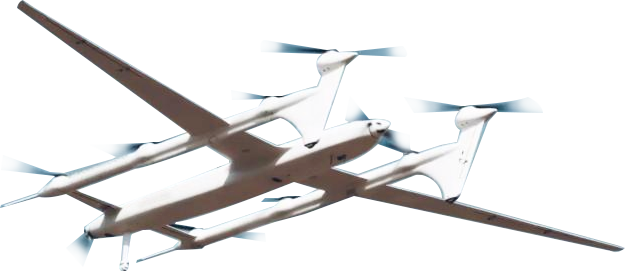

LOONG 9 is a 100KG heavy-load logistics drone.

Parameters

Dimension

Body length:6670 mm

Wingspan:9000 mm

Weight

Aircraft Weight:170 kg

Max. Payload:100 kg

Max. Takeoff Weight:400 kg







Performance

Max. Flight Time:260 min

Cruising Speed:37 m/s

Max. Horizontal Speed:46 m/s

Max. Ascent Speed:3 m/s

Max. Descent Speed:3 m/s

Max. Flight Altitude:5000 m

Comm. & Nav

Transmission Range:100 km

GNSS:GPS+GLONASS+BeiDou+Galileo

Environment

Max. Wind Resistance:Level 7

IP Protection Rating:IP54

Operating Temperature:-20~60℃

Packaging

Package Dimensions:Fuselage Box: 4280*2500*960 mm

Tail Box: 3100*1700*830 mm

Package Weight:Fuselage Box: 750 kg

Tail Box: 459 kg
