LOONG

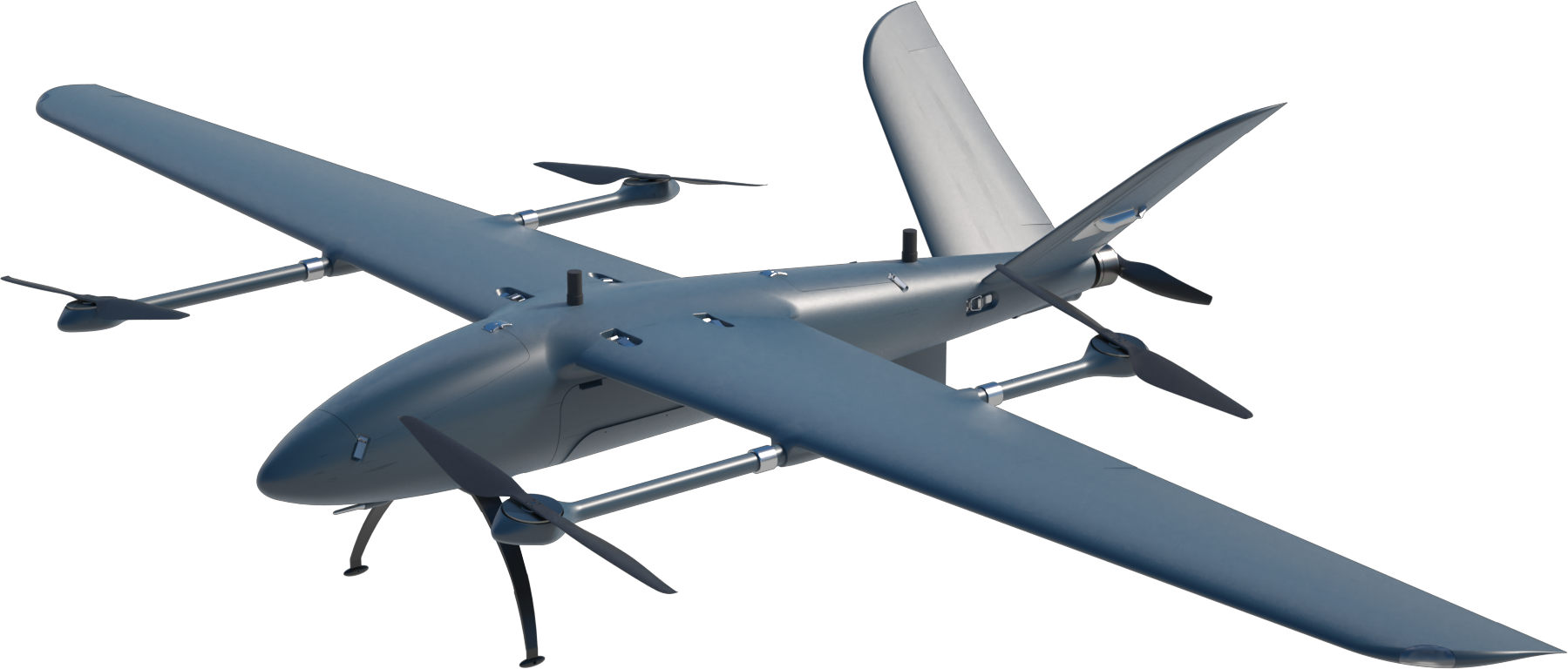

LOONG 3 is a small surveillance drone, which can be used for reconnaissance, patrol, precision strike and other purposes. It has a long flight time, heavy payload capacity without need for flight runway. It is used as an unmanned tool for one unit penetration attack in war.
Dimension
Body length：1899 mm
Wingspan：3914 mm
Weight
Aircraft Weight：15.3 kg
Max. Payload：10 kg
Max. Takeoff Weight：35 kg
Performance
Max. Flight Time：160 min
Cruising Speed：23 m/s
Max. Horizontal Speed：37 m/s
Max. Ascent Speed：3.5 m/s
Max. Descent Speed：2.5 m/s
Max. Flight Altitude：4500 m
Comm. & Nav
Transmission Range：80 km
GNSS：GPS+GLONASS+BeiDou+Galileo
Environment
Max. Wind Resistance：Level 7
IP Protection Rating：IP54
Operating Temperature：-20~60℃
Packaging
Package Dimensions：Fuselage Box: 1580*660*760 mm
Tail Box: 960*550*650 mm
Package Weight：Fuselage Box: 38 kg
Tail Box: 15 kg
- Long Endurance
- Precision Bombing
- Strong Anti-jamming
- Quick Assemble
- Multiway Target Locationing
- Intelligent and standardized design
- VTOL
- Highly Stealthy
- Strong Wind Resistance
